40.5kv 72.5kv 145kv GW4-126 3 Phase Outdoor Disconnect Switch

  • 1
  • 2

Brand Name : XG

Model Number : GW4

Certification : ISO CCC

Place of Origin : XIAN, China

MOQ : 1 SET

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 2000 SET

Delivery Time : 3-7 DAYS

Packaging Details : WOODEN CASE

Frequency : 50/60Hz

Poles Number : 3

Phase : 3 phase or single phase

Standard : IEC/GB

Function : break or switch the line.

Installation Location : power plants

Warranty : 12 months

rated voltage : 40.5kv

rated current : 200A-3150A

Contact Now

1. GW4-126 type 3 phase outdoor disconnectors disconnecting switches 40.5kv 72.5kv 145kv

GW4 Type serial High Voltage Outdoor isolator /Disconnector /disconnecting switches comply with requirements in GB1985-2004 High-voltage Allemating Disconnecting Switches and Earthing Switches,IEC62271-102:2002AC Disconnecting Switches and Earthing Switches ,and IEC60694:1996 Common Clause for High voltage Switchgear and Control Devices.

2. Ambient Condition:

• Altitude:≤1000-3000m

• Ambient temperature:no more than 40°C and no less than -30°C(no less than -40°C in alpina areas )

• Wind speed:≤34m/s

• Earthquake intensity:≤8 degree

• Air pollution :IV

• Ice thickness:≤100mm

• the installation location shall be free from flammable ,explosive dangerous articies,chemical corrosion and flerce vibration

• The pollution grade of post insulator :o for general type and 2 for pollution resistance type

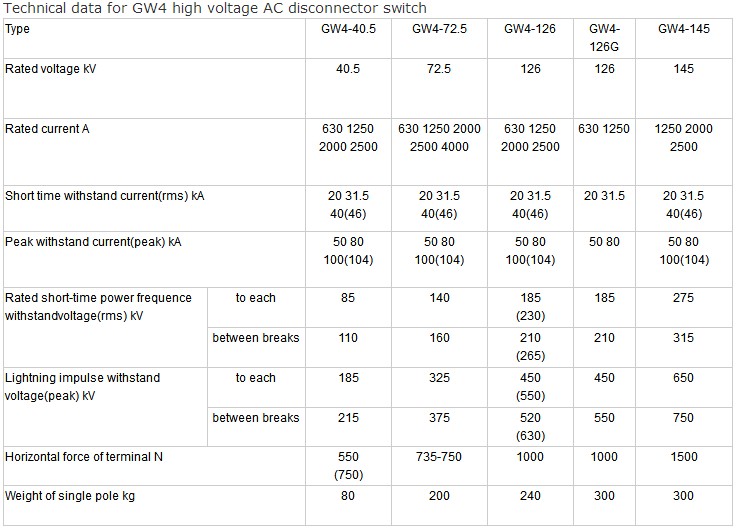

3. Technical data

40.5kv 72.5kv 145kv GW4-126 3 Phase Outdoor Disconnect Switch


4. Factory


40.5kv 72.5kv 145kv GW4-126 3 Phase Outdoor Disconnect Switch

5.Delivery


40.5kv 72.5kv 145kv GW4-126 3 Phase Outdoor Disconnect Switch

6. FAQ


1. Send the technical data, better for all useful information; we will make a good recommendation.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
3. Usually shipped by sea, small order or urgent order we can send you by air.
4. All our activities are accredited to ISO 14001:2015 and IEC standard.
5. Technology ensure the quality satisfy international request.
